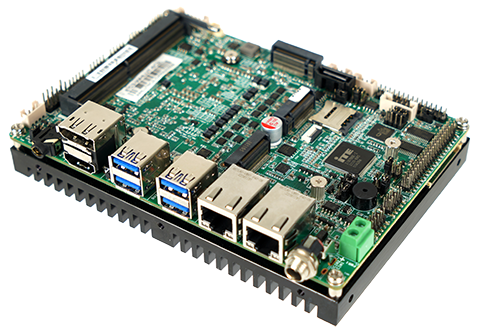

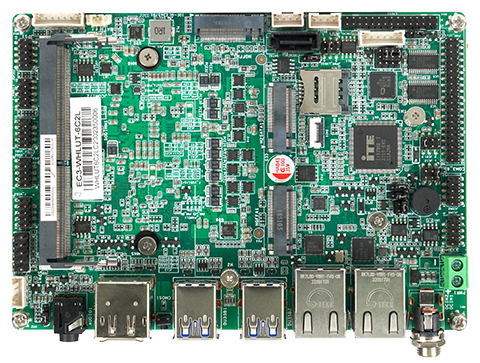

EC3-WHLUT-6C2L
Detailed
Support for Intel® Core TM Whiskeylake&Coffeelake -U Processor
Support single channel SO-DIMM DDR4 2400MHz Max16GB
Support LVDS/EDP+DP+HDMI dual display synchronous asynchronous
On board 1 * Intel l219LM+1 * Intel l211/210AT
M. 2 Key M supports PCle * 4 or SATA SSDs
6 * USB2.0+4 * USB3.2 Gen 2 (10Gbps)
6 * COM232 (supports two RS485 and one RS422 channels)
Support encryption module: TPM2.0/TCM (optional)
Supports diskless startup, network wake-up, power on startup, watchdog
DC 12-24V power supply

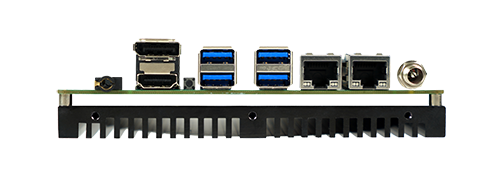

0755-83650405 | CPU | Intel ® Core ™ Whiskeylake&Cometlake processor | Post I/O interface | 1 * AUDIO interface 1 * DP+HDMI interface double-layer seat 1 * CMOS button 4 * USB3.2 Gen 2 (10Gbps) interface 2 * LAN interface 1 * DC interface |
| Chipset | Intel® SOC | ||
| Display chip | Intel ® HD Graphics nuclear display | ||
| Display output | LVDS/EDP+HDMI+DP | ||
| Multi display support | Three display synchronous asynchronous | ||
| USB | 4*USB3.2 Gen2（10Gbps） ，6*USB2.0 | ||
| Memory | 1*SO-DIMM DDR4 2400MHz Max32GB | ||
| sound effects | On board ALC269 audio decoding controller; | Internal I/O | 1 * JPS1 pin 1 * GPIO pin 1 * F_ PANEL pin 3 * F_ USB2.0 pin (expandable 6 * USB2.0) 1 * SPEAKER pin (4Q, 3W power amplifier) 1 * F-AUDIO pin 2 * COM pins (COM1 supports 232/485/422, COM2 supports RS232/RS485) 1 * COM_ CON pin (4 * COM232) 1 * LVDS pin/1 * EDP FPC 1 * INVERT pin 1 * SATA pin 1 * SATA_ PWR pin 1 * BKCL pin |
| Integrated power amplifier 2.2W@4 Ω MAX | |||
| Network card | On board 1 * Intel I226-V; 1 * Intel WGI219-LM Gigabit Network Card | ||
| storage | 1*SATA3.0 ; 1*M.2 M Key | ||
| expansion slot | 1 * M.2 A Key, supporting WiFi/Bluetooth module expansion | ||
| I/O chip | IT8786E-I | ||
| BIOS | AMI BIOS | ||
| power supply | DC/2PIN AT 12~24V Wide voltage power supply | ||
| Cooling System | Equipped with fanless heat sink | ||
| Environment | Working temperature: 0-60 ℃; Storage: -20 ℃~75 ℃ | ||
| Size | 145X100mm |
