Home > Products > Industrial Motherboard > Atom  Platform > ZO-GLKT-6C2L

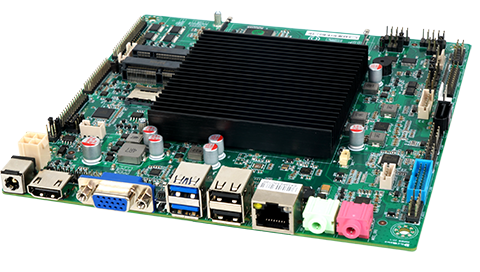

ZO-GLKT-6C2L
Detailed
Support Intel® Gemini lake J4125 Processor Quad core Quad Threads 2.0 GHz~2.7 GHz;Intel® UHD Graphics 600
1*SO-DIMM DDR4 2133/2400MHz Max8GB
Support VGA、HDMI/EDP2、LVDS/EDP1, Support Triple Display
Support HDMI2.0 4K 60Hz Output
Onboard 1*RTL8106 100M(Options: 1000M、2*LAN)
Support 2*USB3.0+7*USB2.0
Support 6*COM232,(Option: COM2 can Support 485)
Support 1*SATA3.0、1*mSATA Support SATA SSD
Onboard 1*MiniPCIe,Support Wifi+Bluetooth /4G Module
DC12V Power Supply
0755-83650405 Online inquiry
Specification parameters
Interfaces
Data download
CPU Intel® Celeron® J4125/J4105/N4000 Processor Post I/O interface 1 * DC interface (P5.5&2.5mm DC Jack)
1 * HDMI interface
1 * VGA interface
2 * USB3.0 interface
2 * USB2.0 interface (LAN2 and 2 * USB2.0 optional)
1 * LAN1 * HP_ OUT interface
1 * MIC_ IN interface
Chipset SOC
Display chip Intel UHD Graphics 600
Display output LVDS+HDMI+VGA ;  LVDS+EDP2+VGA
Multi display support EDP1+EDP2+VGA ;  EDP1+HDMI+VGA
USB Can support three display synchronous/asynchronous output
Memory 4*USB3.2 GEN1(5Gbps)+6*USB2.0
sound effects 1*SO-DIMM  DDR4  2400MHz  Max8GB Internal I/O 1 * EDP2 pin
1 * VGA_ H pin
1 * F-AUDIO pin
1 * SPEAKER pin
1 * F_ USB3.0 pin (expandable 2 * USB3.0)
2 * F_ USB2.0 pin (expandable 4 * USB2.0)
1 * SATA pin
1 * SATA_ PWR pin
1 * JPS2 pin
1 * J_ PRINT pin
1 * F_ PANEL pin
2 * COM pin (supports one RS485 option, COM1 and COM2 support live reversible DCD/5V/12v)
1 * COM_ CONN pin (4 * COMRS232)
1 * GPIO pin
1 * LVDS pin/1 * EDP
1 pin
1 * INVERT pin
1 * LCTL pin
1 * 4PIN ATX socket
Network card On board Realtek ALC269HD audio decoding controller
storage On board 1 * RTL8111H/RTL8111G Gigabit Ethernet card
(Optional dual port version)
expansion slot 1 * SATA3.0 interface 1 * mSATA
I/O chip ITE8786E-I
BIOS AMI  BIOS
power supply DC/ATX 4PIN  12V power supply
Cooling System  Equipped with CPU heat sink
Environment Working temperature: 0-60 ℃; Storage: -20 ℃~75 ℃
0%~95% relative humidity, non condensing
Size 170X170mm
