ZO-HM570T-AIO
Detailed
Support for Intel ® Core ™ Tiger Lake 11th generation H-series processor
Supports dual channel SO-DIMM, DDR4 3200MHz, Max32GB
Supports LVDS+EDP1+HDMI display output, three displays simultaneously and asynchronously
Supports 1 * Realtek 8111G/8111H Gigabit Ethernet card (optional dual network)
Supports 4 * USB3.2 Gen2 (10Gbps), 2 * USB3.2 Gen1 (5Gbps), and 4 * USB2.0
1 * M.2 M Key, 1 * SATA3.0
1 * M.2 E KEY, expandable WiFi+Bluetooth (supports wifi6)
DC 12-19V power supply

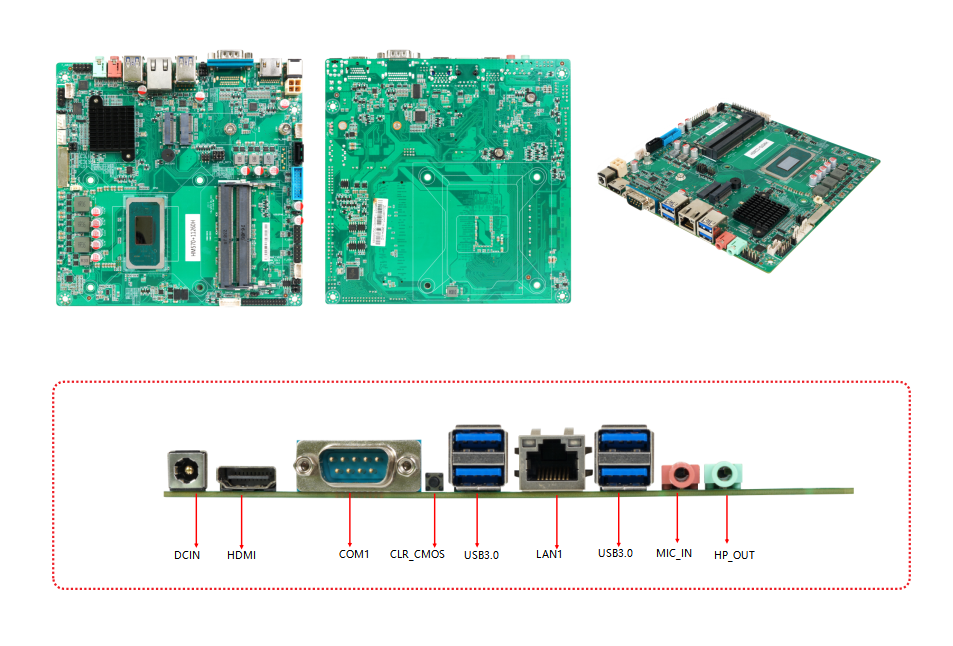

0755-83650405 | CPU | Intel ® Core ™ Tiger Lake 11th generation H-series processor | Post I/O interface | 1 * DC_ IN port 1 * HDMI port 1 * COM port (optional with 1 * VGA port) 1 * CLR_ CMOS buttons 2 * USB3.0 port (1 * LAN2 optional) 1 * LAN1 port 2 * USB3.0 port 1 * MIC-IN interface 1 * HP-OUT interface |
| Chipset | Intel® HM570 | ||
| Display chip | Intel ® Supercore graphics card | ||
| Display output | LVDS+EDP+HDMI | ||
| Multi display support | Three display synchronous asynchronous | ||
| USB | 4*USB3.2 Gen2（10Gbps） ， 2*USB3.2 Gen1（5Gbps），4*USB2.0 | ||
| Memory | 2*SO-DIMM DDR4 3200MHz Max32GB | Internal I/O | 1 * F_ AUDIO pin 1 * Speaker pin 1 * F_ PANEL pin 1 * SYS_ FAN pin 1 * CPU_ FAN pin 1 * EDP1 pin 1 * INVCN socket 1 * LVDS pin 1 * BKCL pin 1 * GPIO pin 2 * F_ USB2.0 pin (expandable 4 * USB2.0) 1 * F_ USB3.0 pin (expandable 2 * USB3.0) 1 * SATA socket 1 * SATA_ PWR socket 1 * GPIO pin 1 * ATX_ IN socket |
| sound effects | On board ALC269 audio decoding controller; | ||
| Integrated power amplifier 2.2W@4 Ω MAX | |||
| Network card | On board 1 * Realtek 8111G/8111H Gigabit Ethernet card | ||
| storage | 1*SATA3.0 ; 1*M.2 M Key | ||
| expansion slot | 1 * M.2 E Key, supporting WiFi/Bluetooth module expansion | ||
| I/O chip | IT8613E-I | ||
| BIOS | AMI BIOS | ||
| power supply | DC/4PIN ATX 12~19V | ||
| Cooling System | Requires self equipped 115X CPU heat sink | ||
| Environment | Working temperature: 0-60 ℃; Storage: -20 ℃~75 ℃ | ||
| 0%~95% relative humidity, non condensing | |||
| Size | 170X170mm |
