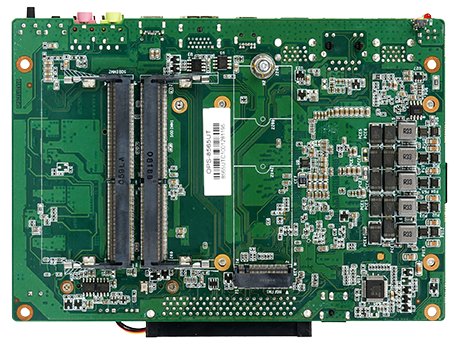

OPS-8565UT
Detailed
Support for Intel ® Celeron Whiskey&Cometlake processor
Dual channel SO-DIMM, DDR4 2400MHz, Max64GB
Supports HDMI+miniDP dual display synchronous
Supports 1 * Intel I219 Gigabit Ethernet card
Supports 1 * USB2.0; 5 * USB3.0 (Type-C has no USB3.0 signal when the CPU uses Base-U)
Supports 1 * Type-C ports; 1 * OSPCN expansion slot
Supports 1 * SATA_ HDD; 1 * M.2 M Key
Supports 1 * M.2 A Key
Supported, DC 12V power supply

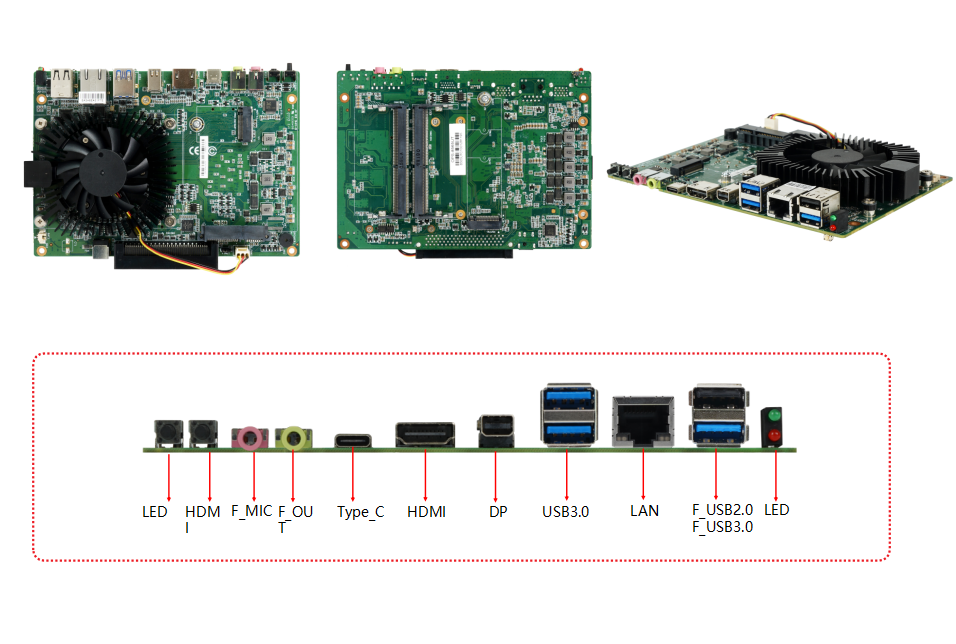

0755-83650405 | CPU | Intel ® Celeron Whiskey&Cometlake processor | Post I/O interface | 1 * PSON button 1 * RST button 1 * F_ MIC port 1 * F_ OUT port 1 * Type-C port 1 * HDMI port 1 * miniDP port 2 * USB3.0 port 1 * LAN port 1 * USB2.0+USB3.0 Port Double Layer Seat 1 * REC button 1 * LED signal indicator light 1 * DCIN port 1 * OSPCN expansion slot |
| Chipset | Intel® SOC | ||
| Display chip | Intel ® Supercore graphics card | ||
| Display output | HDMI+miniDP | ||
| Multi display support | Dual display synchronous asynchronous | ||
| Memory | 2*SO-DIMM DDR4 2400MHz Max64GB | ||
| sound effects | On board Realtek ALC662 audio decoding controller | ||
| network card | On board 1 * Intel I219 Gigabit Ethernet card | ||
| Storage | 1*SATA_HDD；1*M.2 M Key | ||
| expansion slot | 1 * M.2 A Key, 1 * OSPCN expansion slot | ||
| I/O chip | IT8772E-I | ||
| BIOS | AMI BIOS | ||
| Power supply | DC 12V power supply | ||
| Cooling System | Standard fanless heat sink | Internal I/O | 1 * GPIO pin 1 * S_ FAN pin 1 * JME pin |
| Environment | Working temperature: -10~60 ℃; 0%~95% relative humidity, non condensing | ||
| Size | 190X170MM |
