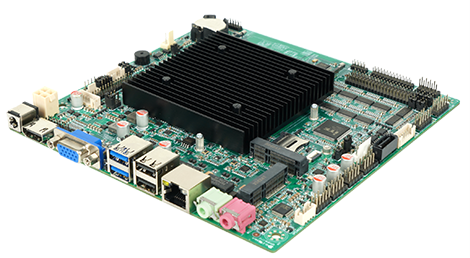

ZO-GLKTF-10C2L
Detailed
Support Intel® Gemini lake J4125 Processor Quad core Quad Threads 2.0 GHz~2.7 GHz；Intel® UHD Graphics 600
1*SO-DIMM DDR4 2133/2400MHz Max8GB
Support VGA、HDMI/EDP2、LVDS/EDP1, Support Triple Display
Support HDMI2.0 4K 60Hz Output
Onboard 1*RTL8106 100M（Options: 1000M、2*LAN）
Support 2*USB3.2 GEN1(5Gbps)+6*USB2.0
Support 10*COM232，COM2 can support RS485/422；COM3 can support RS485
Support 1*SATA3.0、1*mSATA ,SATA SSD
Onboard 1*MiniPCIe，Support Wifi+Bluetooth /4G Module
DC12V Power Supply
0755-83650405 Online inquiry
Specification parameters
Interface Introduction
Data download
Specification parameters
CPU Intel® Celeron® J4125/J4105/N4000 Processor Rear I/O 1*DC（φ5.5&2.5mm DC Jack）
Chipset SOC 1*HDMI
GPU Intel UHD Graphics 600 1*VGA
Display LVDS+HDMI+VGA ;  EDP1+HDMI+VGA 2*USB3.0
Muilt dispaly VGA+HDMI/EDP2+LVDS/EDP1 2*USB2.0 （LAN2 or 2*USB2.0
Triple Display(synchrony/asynchrony) 1*LAN
USB 2*USB3.2 GEN1(5Gbps)+6*USB2.0 1*HP_OUT
Memory 1*SO-DIMM  DDR4  2400MHz  Max8GB 1*MIC_IN
Audio Onboard Realtek ALC897  Internal I/O 1*VGA_H pin
NS4251 1*F-AUDIO pin
Network Onboard 2*RTL8111H/RTL8111GGigabit Ethernet 1*SPEAKER pin
Storage 1*SATA3.0   1*mSATA 3*F_USB2.0 pin（can be extended to 6*USB2.0）
Slot 1*Mini_Pcie（for WIFI+bluetooth/4G） 1*SATA pin
I/O chip ITE8786E-I 1*SATA_PWR pin
BIOS AMI  BIOS 1*JPS2 pin
Power DC/ATX 4PIN  12V power supply 1*J_PRINT pin
1*F_PANEL pin
Cooling FANLESS 10*COM pin（PIN（ Support 1*RS485，COM1 and COM2 support ）
RI/5V/12V）
Environment operation：0~60℃; storage：-20℃~75℃
0% ~ 95% Relative Humidity,Non-condensing		 1*GPIO pin
1*LVDS pin/1*EDP1 pin
1*INVERT pin
Size 170X170mm 1*LCTL pin
1*4PIN ATX pin
