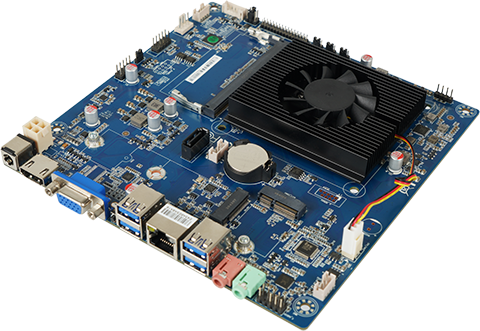

ITX-GLKT-AIO
Detailed
Support for Intel Celeron ® Gemini Lake processor
Single channel SO-DIMM, DDR4 2400MHz, Max8GB
Supports LVDS+HDMI+VGA, three display synchronous
On board 1 * Realtek RTL8111H/8111G Gigabit Ethernet card
Supports 3 * USB2.0+4 * USB3.2 Gen1 (5Gbps)
Supports 1 * SATA, 1 * M.2 M Key (supports SATA SSD)
Supports 1 * M.2 E Key (supports WiFi+Bluetooth module)
DC 12V power supply, supporting power on and self start
0755-83650405 | CPU | Intel Celeron ® Gemini Lake processor | Post I/O interface | 1 * DC interface |
| Chipset | Intel® SOC | 1 * HDMI interface | |
| Display chip | Intel ® Ultra High Definition Graphics Card 600 | 1 * VGA interface | |
| Display output | LVDS+HDMI+VGA | 1 * CLR_ CMOS buttons | |
| Multi display support | Supports three display synchronous and asynchronous | 4 * USB3.2 Gen1 interface (5Gbps) | |
| USB | Support 3*USB2.0+4*USB3.2 Gen1(5Gbps) | 1 * LAN1 interface | |
| Memory | 1*SO-DIMM DDR4 2400MHz Max8GB | 1 * MIC-IN interface | |
| sound effects | On board ALC269 audio decoding controller; Integrated power amplifier 2.2W@4 Ω MAX |
1 * LINE OUT interface | |
| Internal I/O | 1 * F_ AUDIO pin | ||
| 1 * SPEAKER pin | |||
| Network card | On board 1 * Realtek RLT8111H/8111G network card | 1 * CPU_ FAN pin | |
| storage | 1*SATA, 1*M.2 M Key（SATA SSD） | 1 * DEBUG pin | |
| Expansion slot | Supports 1 * M.2 E Key (supports WiFi+Bluetooth module) | 1 * SATA socket | |
| I/O chip | IT8613E-I | 1 * JSATA_ PWR pin | |
| BIOS | AMI BIOS | 1 * LVDS pin | |
| power supply | DC/4PINATX 12V power supply | 1 * INVERT socket | |
| Cooling System | Equipped with CPU fan and heat sink | 1 * BKCL socket | |
| Environment | Working temperature: 0-60 ℃; Storage: -20 ℃~75 ℃ | 2 * F_ USB pin (expandable 3 * USB2.0) | |
| 0%~95% relative humidity, non condensing | 1 * F_ PANEL pin | ||
| Size | 170X170mm | 1 * 4Pin ATX power socket |
