NANO-J1900T-2C2L

Detailed

Support for Intel ® Bayrail J1900/1800 processor

Supports 1 * SO-DIMM, DDR3L-1333, Max.8GB

Supports display output VGA, HDMI, and dual display synchronous/asynchronous

On board 2 * Realtek RTL8111E Gigabit Ethernet card

Supports 1 * SATA and 1 * Mini SATA

Supports 1 * USB3.0+3 * USB2.0

Supports 1 * Mini PCIE (For WiFi/4G extension)

Support 1 * TF extended storage card interface; SIM plug-in installation

Supports 2 * COM232

Support DC 12V power supply

0755-83650405 Online inquiry

Product Specification

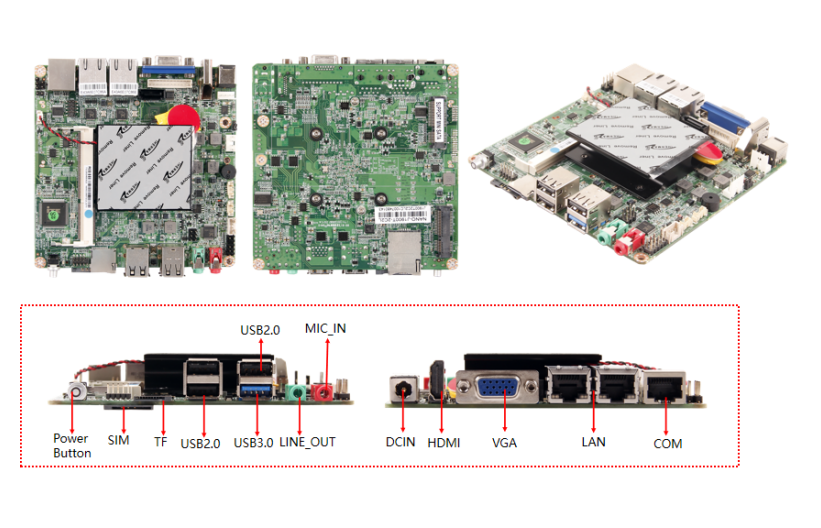

Detail drawing

Data download

CPU	Support for Intel ® Bayrail processor, J1900/1800	Post I/O interface	1 * USB3.0 port
Chipset	Intel®SOC		3 * USB2.0 port
Display chip	Intel ® HD Graphics integrated graphics card		1 * VGA port
Display output	VGA、HDMI		1 * HDMI port
Multi display support	VGA+HDMI (synchronous/asynchronous dual display)		2 * LAN port
USB	1USB3.0 3USB2.0		1 * MIC_ IN port
Memory	1*SO-DIMM，DDR3L 1333MHZ Max 8GB		1 * LINE OUT port
sound effects	On board Realtek ALC662HD audio decoding controller		1 * COM_ RJ45 port
sound effects	On board Realtek ALC662HD audio decoding controller		1 * DC port
Network card	On board 2 * Realtek RTL8111E Gigabit Ethernet card		1 * PWR SW button
Network card	On board 2 * Realtek RTL8111E Gigabit Ethernet card	Internal I/O	1 * VGA pin
storage	1SATA，1TF		1 * COM pin
storage	1*Mini-SATA(For mSATA)		1 * F_ PANEL pin
expansion slot	1Mini-PCIE(For 4G/ WIFI ) 1SIM		1 * F_ AUDIO pin
I/O chip	2*COM232		1 * J1 pin
BIOS	AMI BIOS		1 * GPIO pin
power supply	DC 12V power supply		1 * SYS-FAN pin
Cooling System	Equipped with CPU heat sink		1 * CPU-FAN pin
Cooling System	Equipped with CPU heat sink		1 * CIR pin
Environment	Working temperature: 0-60 ℃; Storage: -20~75 ℃		1 * DEBUG pin
Environment	0%~95% relative humidity, non condensing		1 * SPEAKER pin
Size	120 X 120mm		1 * SATA-PWR pin
