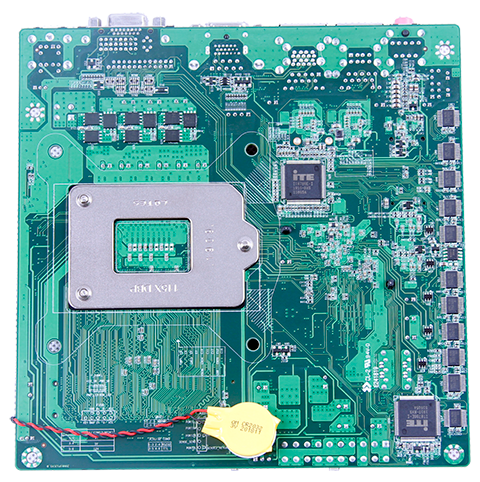

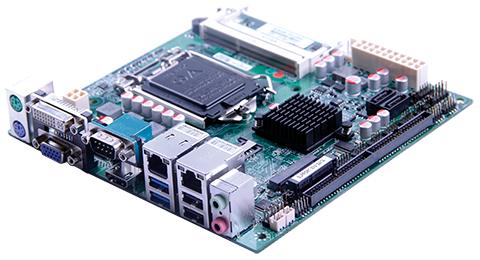

ZO-H81P-12C
Detailed
Support Intel LGA1150(Haswell) CPU
On board VGA/DVI/HDMI three Display
Built in HD Graphcis Card，4KUHD Display
Integrated ALC662 Channel
Built in 1*Mini PCIe/SIM Expansion slot，Support 3G/Wifi
Built in 1*Msata，2*SATA3.0
Support 2*USB 3.0，12*USB 2.0
Support 12*COM
ATX power supply

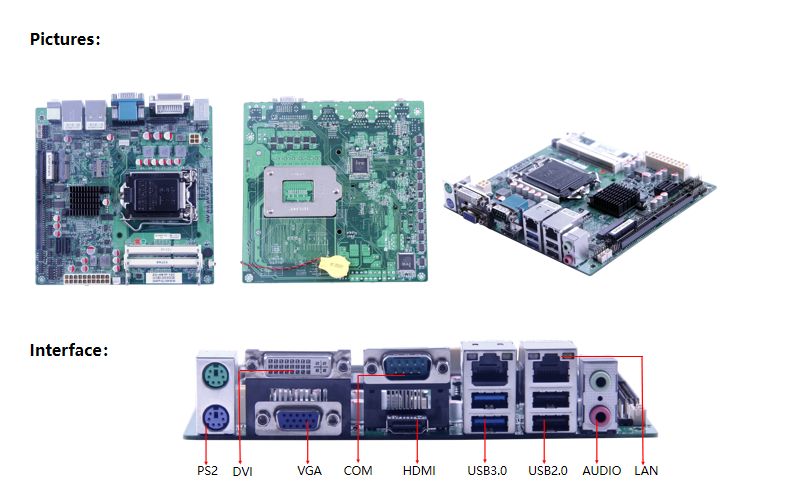

0755-83650405 | CPU | Supports Intel LGA1150 (Haswell) processors | Post I/O interface | 2 * LAN interface 2 * USB3.0 interface 2 * USB2.0 interface 1 * VGA interface 1 * HDMI interface 1 * COM interface 1 * MIC-IN interface 1 * LINE OUT interface 1 * DVI interface 1 * PS2 interface |
| Chipset | Intel H81 | ||
| Display chip | Intel CPU built-in display core | ||
| Display output | VGA 、DVI、HDMI | ||
| Multi display support | Dual display/asynchronous dual display | ||
| USB | 2 * USB3.0 12 * USB2.0 (10 * USB2.0 needs to be expanded) | ||
| Memory | 2*SO-DIMM，DDR3L 1600MHz ，16GB | ||
| sound effects | On board Realtek ALC662HD audio decoding controller | ||
| Network card | On board 2 * Realtek RTL8111E Gigabit Ethernet card | Internal I/O | 1 * LPT pin arrangement 1 * F-AUDIO pin 2 * JSPK pin 5 * F_ USB2.0 pin (expandable 10 * USB2.0) 11 * COM pin 1 * F_ PANEL pin 1 * GPIO pin 1 * ATX power supply pin 1 * 4 PINATX pin 2 * SATA |
| storage | 2*SATA ；1*M-SATA（for SSD/4G） | ||
| expansion slot | 1*MINI-PCIE(for WIFI) | ||
| I/O chip | ITE8786E-I | ||
| BIOS | AMI BIOS | ||
| power supply | ATX power supply | ||
| Cooling System | Equipped with CPU heat sink and fan | ||
| Environment | -10~60 ℃; 0%~95% relative humidity, non condensing | ||
| Size | 170X170MM |
