OPS-H310-CR1

Detailed

Intel Coffee lake&Coffee lake-R I3/I5/I7 65W CPU

Onboard VGA/HDMI/DP display output

Supports HDMI2.0 with maximum support 4K@60FPS OPS interface

Supports DP1.2 with maximum support 4K@30FPS IO interface

Supports HDMI 1.4b with maximum support 4K@30FPS IO interface

Supports DDR4 dual channel memory, better supporting 4K video encoding and decoding

Support Key M NGFF M.2 interface, expandable SSD module

Support Key A NGFF M.2 interface, scalable WiFi/Bluetooth

Support hardware one click system backup and restore

Adhere to EUP (ErP) energy-saving standards, with standby power consumption below 0.5W

USB interface supports short circuit protection, power short circuit system does not crash or restart

Support intelligent fan control

Unique design, supporting OPS interface for live and undamaged plugging and unplugging

Enhanced USB signal driving capability, compatible with various touch boxes and other devices

0755-83650405 Online inquiry

Product Specification

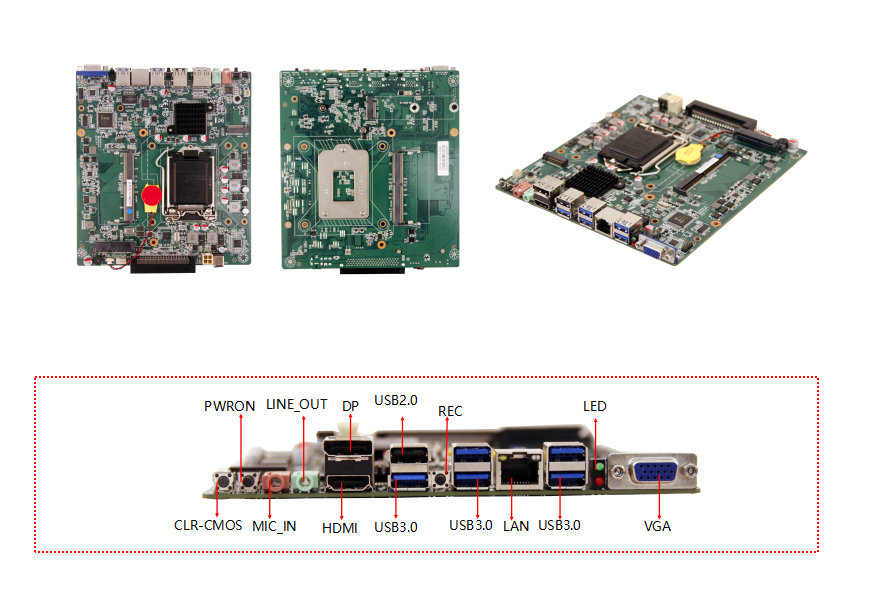

Interface

Data download

CPU	intel coffee lake&Coffee lake-R I3/I5/I7 65W CPU	I/O terminal display	5 * USB3.0 port, 1 * USB2.0 port 1 * VGA port 1 * HDMI port 1 * DP port 1 * LAN port 1 * MIC-IN port 1 * LINE OUT port 1 * DCIN port 1 * REC button 1 * PWR - ON button 1 * C - CMOS button 1 set of LED power hard drive indicators
Chipset	H310
BIOS	Intel CPU built-in display core
Display output	VGA/HDMI/DP
Multi display support	VGA+HDMI/VGA+DP/HDMI+DP；
Multi display support	VGA+HDMI+DP
USB	5USB3.0 ,1USB2.0
Memory	2*SO-DIMM，DDR4 2400/2666MHz
sound effects	On board Realtek ALC662HD audio decoding controller
network card	On board Realtek RTL8111H Gigabit Network Card
Storage	1 * 2.5 laptop hard drive interface (SATA HDD)
expansion slot	1*NGFF-M 2280 support SATA SSD;
	1*NGFF-A 2230 support WIFI+Bluetooth;
	1 * OPS-C socket
I/O Chip	ITE8784E-I	I/O interface	1 * OPS-C port 1 * COM pin 1 * GPIO pin 1 * RST pin 1 * ATX pin 1 * CFAN pin
BIOS	AMI BIOS
Power	DC/4PIN ATX 12~19V Wide voltage power supply
Mainboard size	190X170MM
COOLING SYSTEM	OPS dedicated double ball radiator
operation temperature	Working temperature: -10-60 ℃; Storage: -20 ℃~75 ℃;
operation temperature	0%~95% relative humidity, non condensing
