Home > Products > Industrial Complete Machine > Industrial Panel PC > PPC-1511
PPC-1511
Detailed
Support for Intel ® Bay Trail, Gemini lake, Elkhart lake, 6th generation Sky lake&7th generation Kaby lake, 8th generation Whiskeylake&10th generation Cometlake U processors
Supports SO-DIMM, M-SATA, M.2 Sata, M.2 NVME storage
Standard 15.6-inch high-definition display screen, capacitive touch screen, supporting dual display
Standard configuration with 4USB and 1LAN interfaces, expandable with 2USB and multi specification COM interfaces
Supports 1 * MINI-PCIE (for WIFI), 1 * SIM, and supports 3G, 4G, and 5G modules
Supports VESA bracket installation, wall mounted and desktop mounted
The complete machine has a windless design, patented industrial design, and is aesthetically pleasing
Panel protection level: IP65 waterproof and dustproof
ESD Protection: ±6kV (Contact ), ± 12kV (Air)
The product can be widely used in industries such as industrial automation, environmental monitoring, wind power generation, 3D machine vision inspection, etc
0755-83650405 Online inquiry
Specification Parameter
Product Environmental Indicators

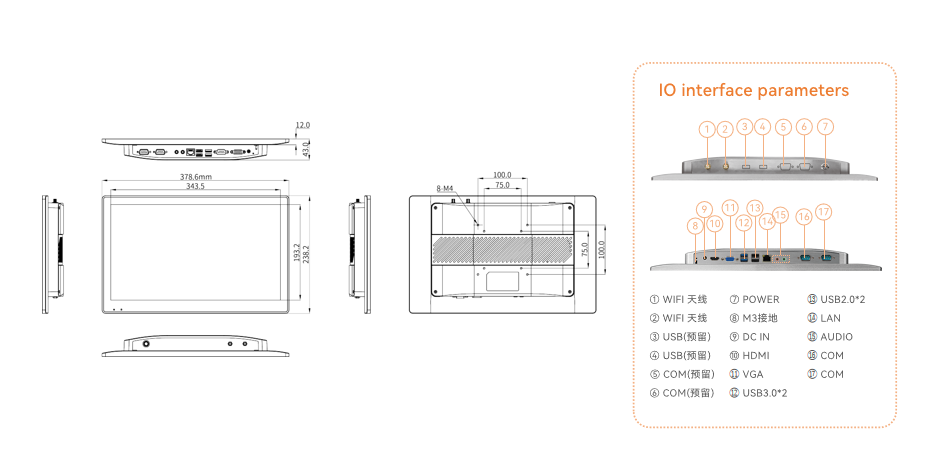

Product interface diagram &installation dimensions
Product ordering information
Data download
Product Model  PPC-1711 Pilot lamp

Reserved power status indicator light under the screen

Dimensions

417x260x46mm

Display

17.3

Trumpet 2 x 4 Ω 3W Weight

< 2.8kg

Touch Screen

Capacitive touch screen

Heat dissipation Fanless Product  colour Space Gray
Resolution Ratio

1920*1080

Overall Power Consumption

<21W (screen 7.5W), slightly higher power consumption for 6-10 generations

Chassis material

Aluminum alloy structure

Luminance

300cd/㎡

Installation Method

Compatible with embedded, wall mounted, and desktop versions


CPU Support for Intel ®  Bay Trail J1900 processor Support Intel® Gemini lake J4125/J4105/N4000
BIOS AMI  BIOS AMI  BIOS
Chipset  Intel® SOC Intel® SOC
Display  Intel ® HD Graphics integrated graphics card Intel UHD Graphics 600
Network  Realtek RTL8111  RTL8111H/RTL8111G
Audio Realtek ALC269HD  Realtek ALC269HD
Memory  Single strip DDR3L 1333MHz Max 8G Single strip DDR4 2133/2400MHz  Max 8G
Hard dive  M-SATA 128G M-SATA 128GB
Functions  Supports WiFi, Bluetooth, 4G, and watchdog functions Supports WiFi, Bluetooth, 4G, and watchdog functions
Front I/O 1 * Switch (with LED);2 * Antenna ;2 * USB/2 * COM(reserved) 1 * Switch (with LED);2 * Antenna;2 * USB/2 * COM (reserved)
Rear I/O  1 * LINE OUT interface
1 * MIC-IN interface
1 * LAN interface
3 * USB2.0 interface
1 * USB3.0 interface
1 * HDMI interface
1 * VGA interface
1 * DC interface
2*COM232
1 * M3 grounding screw hole
1 * LINE OUT interface
1 * MIC-IN interface
1 * LAN interface
2 * USB2.0 interface
2 * USB3.0 interface
1 * VGA interface
1 * HDMI interface
1 * DC interface
2*COM232
1 * M3 grounding screw hole
Power IN DC 12V DC power supply DC 12V~24V wide voltage input
OS support Windows 7 / Windows 10 / Linux Windows 7 / Windows 10 / Linux
Power Adapter INPUT : 100-240V50/60Hz ; Output : 12.0V/5.0A INPUT : 100-240V50/60Hz ;Output : 12.0V/5.0A
Certification CCC / CE /FCC/ RoHs CCC / CE /FCC/ RoHs

Processor

Support for Intel ®   Elkhart Lake J6412/J6413 processor

Support for Intel ® Kaby Lake&Sky Lake processors (6th to 7th generation)

BIOS

AMI  BIOS

AMI  BIOS

Chipset

Intel® SOC

Intel® SOC

Display

Intel® UHD Graphics

Intel® Graphics 610

Network

Realtek 8111H/8111G

Realtek RTL8111H/8111G

Audio

Realtek ALC269HD

HS-100B Audio Decoding Controller

Memory

Single strip DDR4 3200MHz Max 32G

DDR4 2133MHz Max 32G

Hard dive

M.2 2280 Sata 128GB

M.2 2280 NVME 256GB

Functions

Supports WiFi, Bluetooth, 4G, 5G modules

Supports WiFi, Bluetooth, 4G modules

Front I/O

1 * Switch (with LED);2 * Antenna;

2 * USB/2 * COM (reserved)

1 * Switch (with LED);2 * Antenna;

2 * USB/2 * COM (reserved)

Rear I/O

1 * LINE OUT interface

1 * MIC-IN interface

1 * LAN interface

2 * USB2.0 interface

2 * USB3.2 Gen2 interface

1 * VGA interface

1 * HDMI interface

1 * DC interface

2*COM232

1 * M3 grounding screw hole

1 * LINE OUT interface

1 * MIC-IN interface

1 * LAN interface

2 * USB2.0 interface

2 * USB3.0 interface

1 * VGA interface

1 * HDMI interface

1 * DC interface

2*COM232

1*CLR_ CMOS buttons

1 * M3 grounding screw hole

Power IN

DC 12V DC power supply

DC 12V DC power supply

OS support

Windows 7 / Windows 10 / Linux

Windows 7 / Windows 10 / Linux

Power Adapter

INPUT : 100-240V50/60Hz

Output : 12.0V/5.0A

INPUT : 100-240V50/60Hz

Output : 12.0V/5.0A

Certification

CCC / CE / FCC / RoHs

CCC / CE / FCC/ RoHs

  National standard Parameter Description
EMC GB/T 9254.1-2021
Radio disturbance limits and measurement methods for information technology equipment
Radiation disturbance (B) level                                                                                    Conducted disturbance (B) level
GB/T 17618-2015                                                            Information technology equipment immunity limits and measurement methods Meet the requirements of 6KV contact discharge and 12KV air discharge
Safety GB 4943.1-2011
Information technology equipment security - Part 1: General requirements
Grounding resistance: ≤ 0.1 Ω
Dielectric strength: Under a limited leakage current of 10mA, for Class I equipment, the withstand voltage of the primary circuit to the casing is ≥ 1.5KV AC or 2.2KV DC; For Class II equipment, the withstand voltage of the primary circuit to the casing is ≥ 3.0KV AC or 4.3KV DC
Insulation resistance: ≥ 100M Ω
Leakage current: ground leakage current ≤ 3.5mA
Environment GB/T 9813.4-2017
General specification for computers - Part 4: Industrial application microcomputers
GB/T 2423
Environmental Test

Working temperature: 0 ℃~50 ℃
Storage temperature: -20 ℃~70 ℃

Damp heat: 40 ℃ 95% RH
Panel protection level: IP65
Drop in packaging: The machine is packaged at a height of 1 meter, with 8 edges and 6 sides dropping once each
Vibration: 5-5.5Hz, displacement 25.4mm; 5.5~200Hz/acceleration 1.0g, working direction; Test duration1 cycle
Impact: Half sine pulse, peak acceleration of 10g, pulse width of 11ms, and 3 times of impact in the working direction Noise: (0) dB

Product Type

Specifications Description

Remarks

PPC-1511

15.6 inch LCD screen/capacitive touch screen/J1900/DDR3L 1333MHz 4GB/M-SATA 128GB 15.6 inch LCD screen/capacitive touch screen/J1900/DDR3L 1333MHz 4GB/M-SATA 128GB



PPC-1511

15.6-inch LCD screen/capacitive touch screen/J4125/DDR4 2133/2400MHz 4GB/M-SATA 128GB



PPC-1511

15.6 LCD screen/capacitive touch screen/J6412/DDR4 3200MHz 4GB/M2 2280 Sata 128GB



PPC-1511

15.6 LCD screen/capacitive touch screen/6200U/DDR4 2133MHz 8GB/M2 2280 NVME 256GB



PPC-1511

15.6 LCD screen/capacitive touch screen/8145U/DDR4 2666MHz 8GB/M2 2280 NVME 256GB

USB3.2 is Gen1  5Gbps
