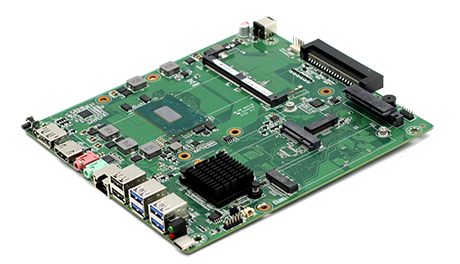

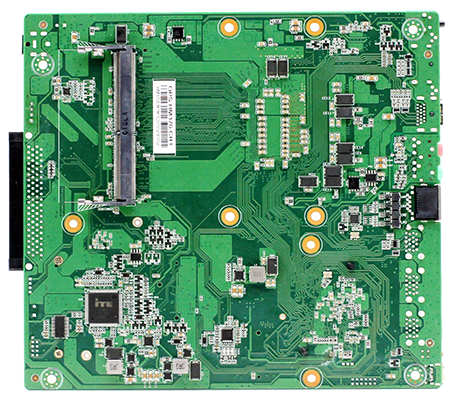

OPS-HM570-CR1

Detailed

The product meets the standard OPS-C design specifications

Intel ® Core Tiger Lake-H series processor

Supports VGA+HDMI1.4+DP1.2+HDMI2.0 display output

Supports HDMI2.0 with maximum support 4K@60FPS OPS interface

Supports 4 * USB3.1+2 * USB2.0+1 * Type-C USB3.1

Supports DDR4 dual channel memory 3200MHz Max64G

Support Key M NGFF M.2 interface, expandable SSD module

Support Key A NGFF M.2 interface, expandable WiFi+Bluetooth

Supports Mini PCIe interface and expandable video capture module

Support hardware one click system backup and restore

Unique design, supporting OPS interface for live and undamaged plugging and unplugging

Enhanced USB signal driving capability, compatible with various touch boxes and other devices

0755-83650405 Online inquiry

Product Specification

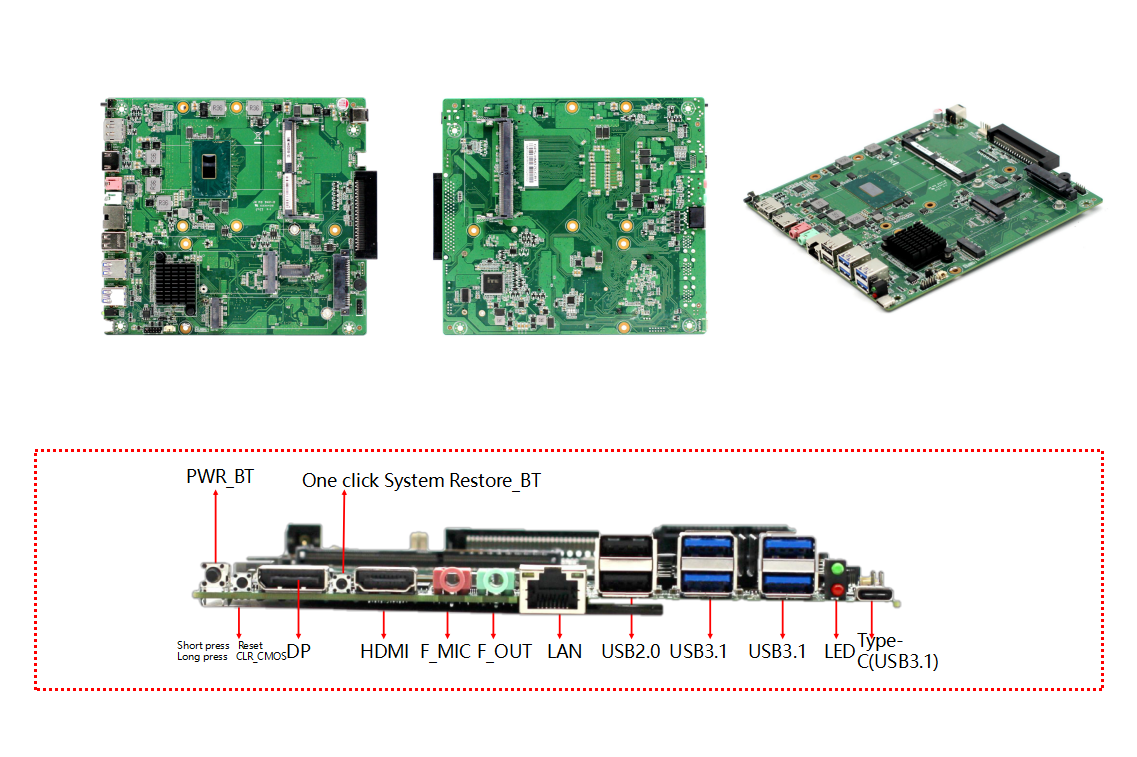

Interface

Data download

CPU	Support for Intel ® Core Tiger Lake-H series processor	I/O terminal display	4 * USB3.1 port 2 * USB2.0 port 1 * HDMI port 1 * DP port 1 * LAN port 1 * MIC-IN port 1 * LINE OUT port 1 * PWR ON button 1 * CLR-CMOS&Reset button 1 * Recovery button (- key system restore) 1 * Power&HDD LED 1 * OPS-C port 1 * DC port
Chipset	Intel®HM570
BIOS	Intel CPU built-in display core
Display output	DP1.2 、HDMI1.4、VGA、HDMI2.0
Multi display support	Three identical (different) steps
USB	4USB3.1+2USB2.0+1*Type-C USB3.1
Memory	2*SO-DIMM DDR4 3200MHz Max64G
sound effects	On board Realtek ALC662HD audio decoding controller
network card	Realtek RTL8111H Gigabit Network Card
Storage	1M.2 M Key（NGFF PCIe X and SATA self-adaption ） 1SATA_HDD(For 2.5" SSD)
expansion slot	1*M.2 A Key(For WIFI+Bluetooth Card);
expansion slot	1 * Mini PCIe (For wifi or video capture extension)
I/O Chip	IT8784E
BIOS	AMI BIOS
Power	DC 12-19V wide voltage power supply
Mainboard size	190X172MM	I/O interface	1 * COM232 pin 1 * JME pin 1 * CPU-FAN pin 1 * VGA pin (expandable VGA display interface)
COOLING SYSTEM	Dual ball CPU heat sink
operation temperature	Working temperature: 0~60 ℃; Storage: -20 ℃~75 ℃;
operation temperature	0%~95% relative humidity, non condensing
